Wooden roof in some countries is very popular because it has a unique appearance and artistic value for the house roof design. Besides that, the wooden roof is also durable, making it an investment choice for some people. So, want to know more detail of the wooden roof, please read the article below.

Wooden Roof Frame Construction and Calculate its Cost | Raysa House

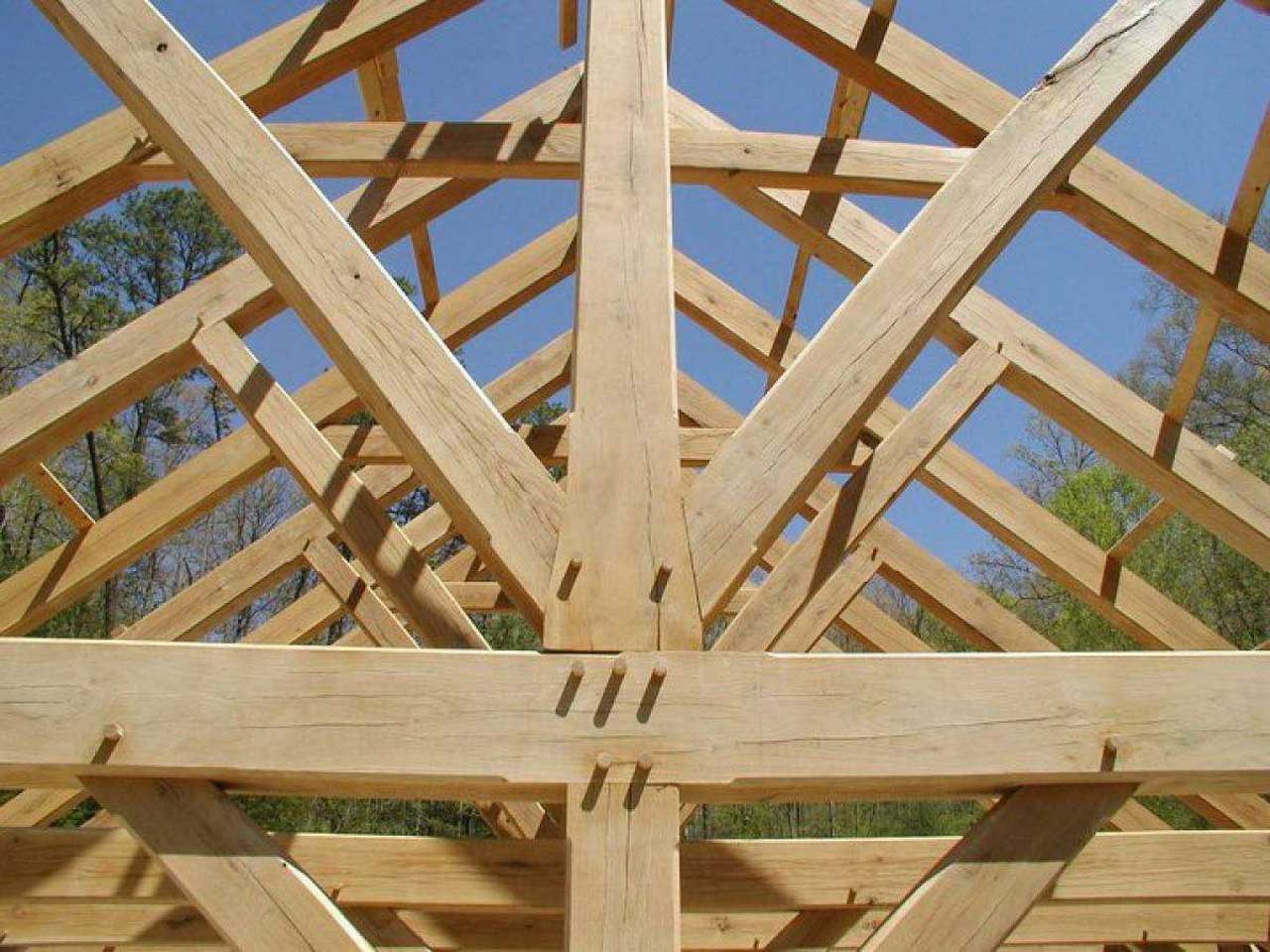

The wooden frame for the roof can last up to hundreds of years. An example can be seen in old colonial buildings that use wooden roof frames – such as the Josiah Dennis Manse Museum, Pieter Bronck House, and the Cathedral Church.

The popularity of wood for the roof frame has never been doubted because of its strength, durability, and appearance. Wood has a character that is resilient and elastic to loading. Each wood also has a unique texture. This texture is even imitated by aluminum manufacturers to get a warm and natural wood look. On average, a construction worker professionals capable of applying wood as a roof frame.

Also read: Extreme Heat Prevention: How To Keep Your House Cool In This Summer

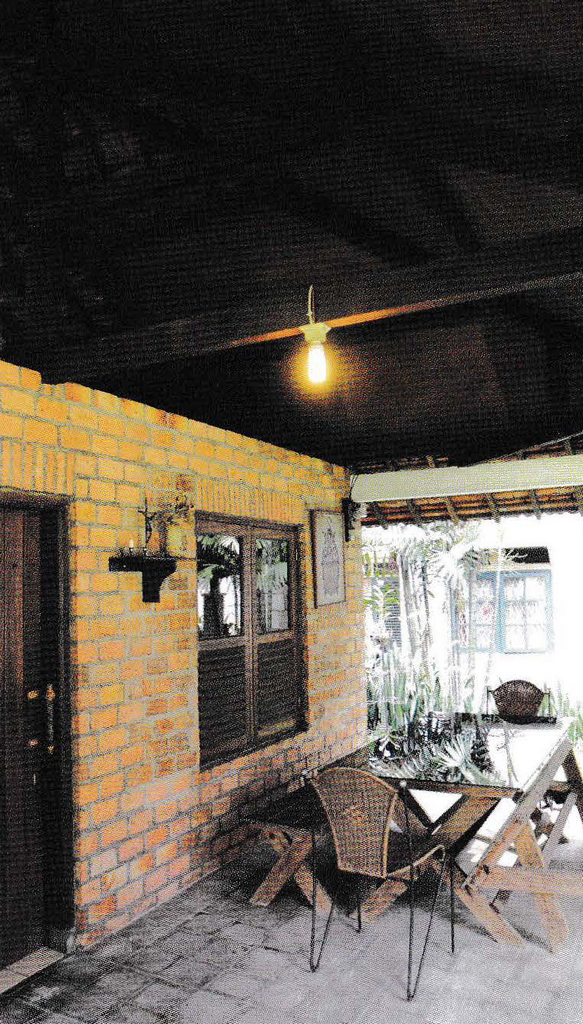

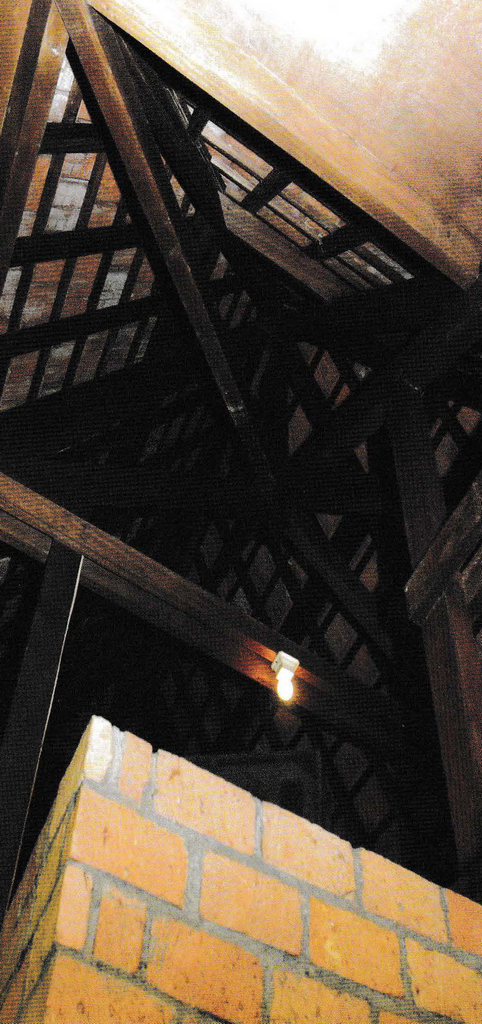

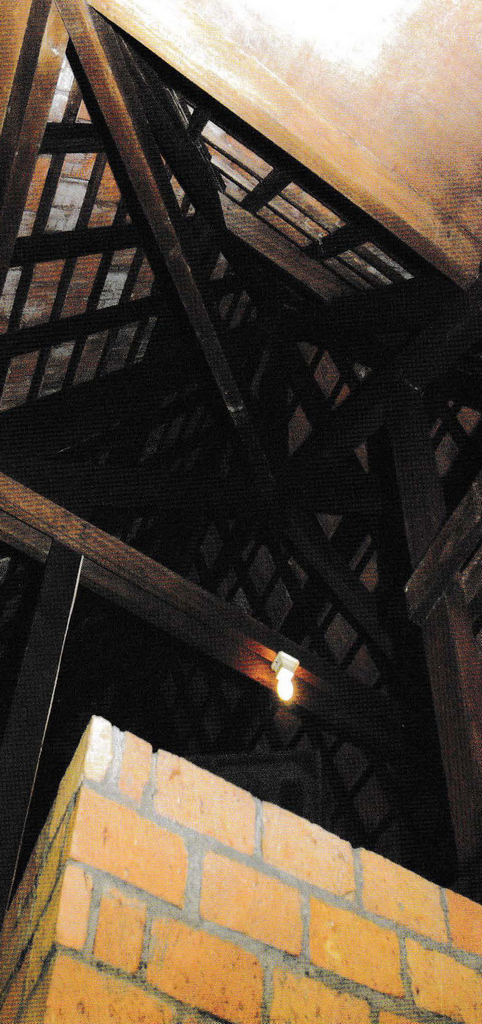

Wooden frames can be exposed and look beautiful. Wooden frames can follow various forms of roofing, from simple ones – such as gable roofs – to complex dome shapes.

CHOOSING WOOD FOR THE ROOF FRAME

Wooden Roof Frame Construction and Calculate its Cost | Raysa House

We recommend that you use wood types with strong classes and durable classes in I-II levels, namely a wood that has the ability to withstand loads well and last long. Some types of wood that included in this category are Redwood, White Pine, Southern Yellow Pine, White Fir, Norway Pine, Teak, Orford Cedar Port, and Eastern Spruce. These types are indeed strong and durable, but their availability is not sustainable so that it gets harder to come by. Consequently, wood prices continue to rise.

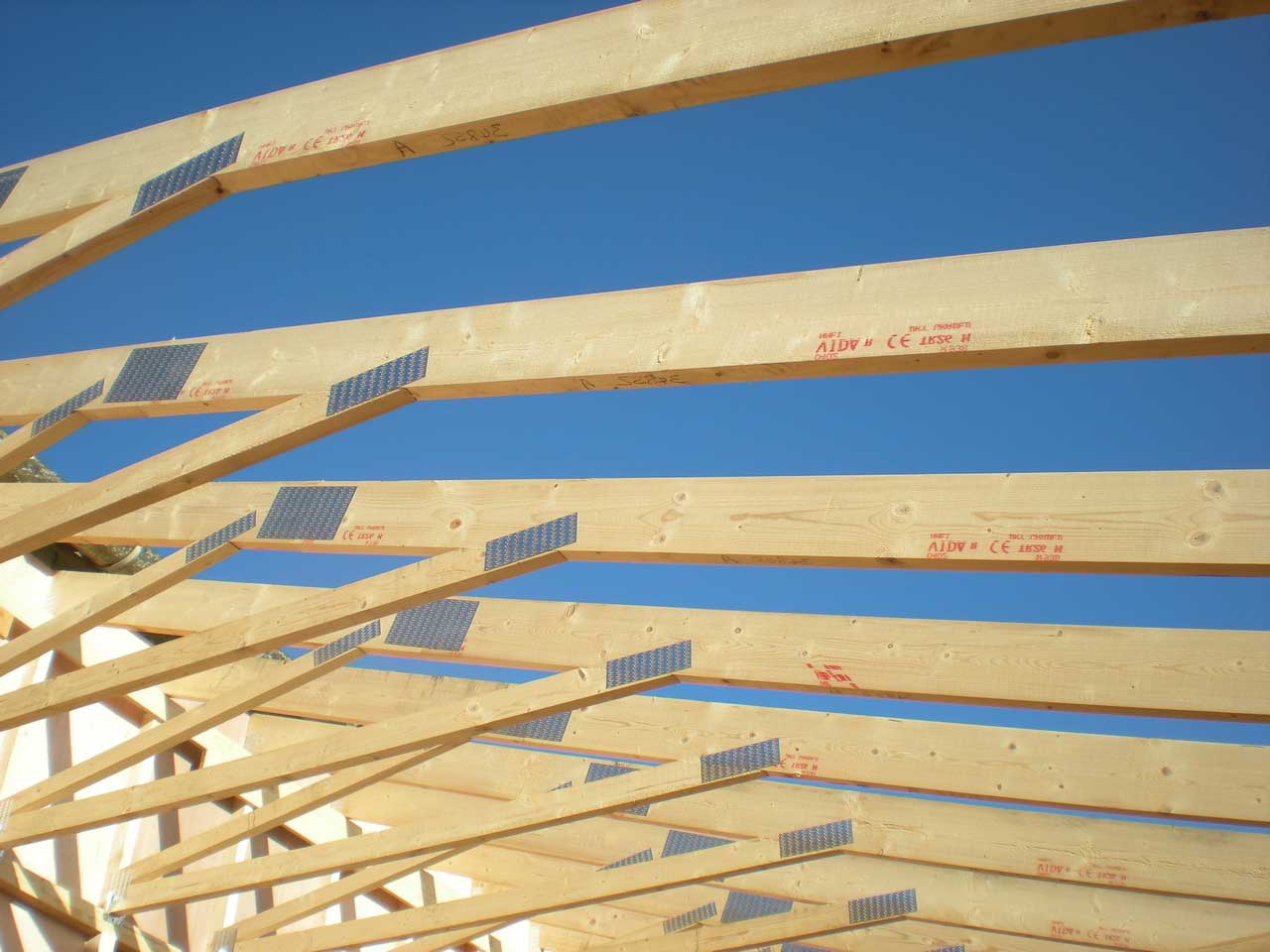

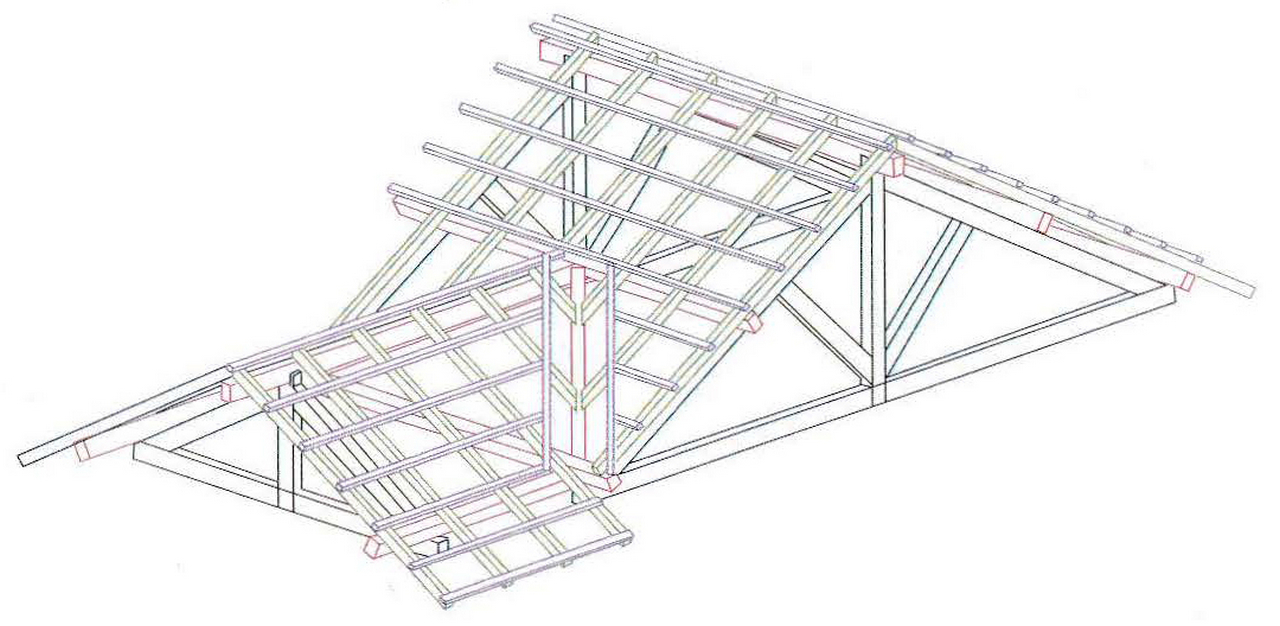

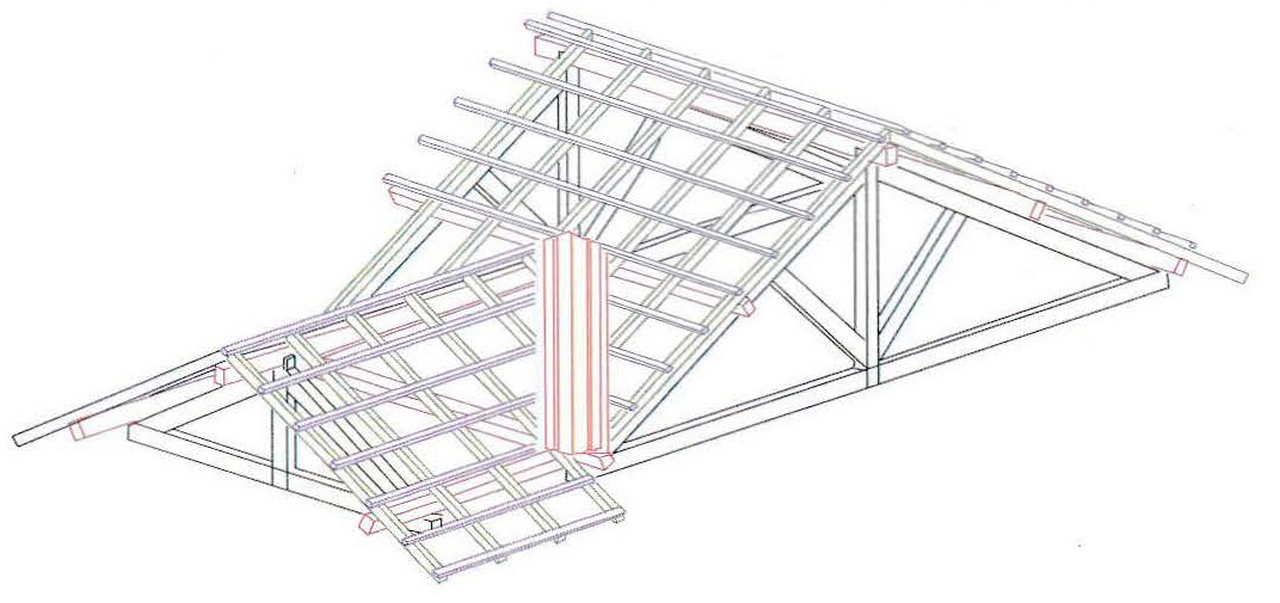

The wooden roof frame has 4 components, namely roof truss, purlin, rafter, and battens. Roof truss as the main structure, then there is a purlin where rafters rest and battens are placed on top of rafters to support roof tile. Here are some common wood size found on the market:

  • 8 x 12 cm for truss and purlin,
  • 6 x 12 cm for truss and purlin,
  • 5 x 7 cm and 4 x 6 cm for rafter,
  • 3 x 4 cm and 2 x 3 cm for battens,

The size and use of materials depend on the weight and size of the roof cover, span and roof model. The more complex the shape, then its material needs to be added. Similarly with the span, for an ideal wood stretch is 4 m, more than that there will be materials waste. Preferably, for roof truss choose wood with a standard size, do not use “sissy” wood (when flattened dimensions reduced)

The Wooden Roof Construction Phases

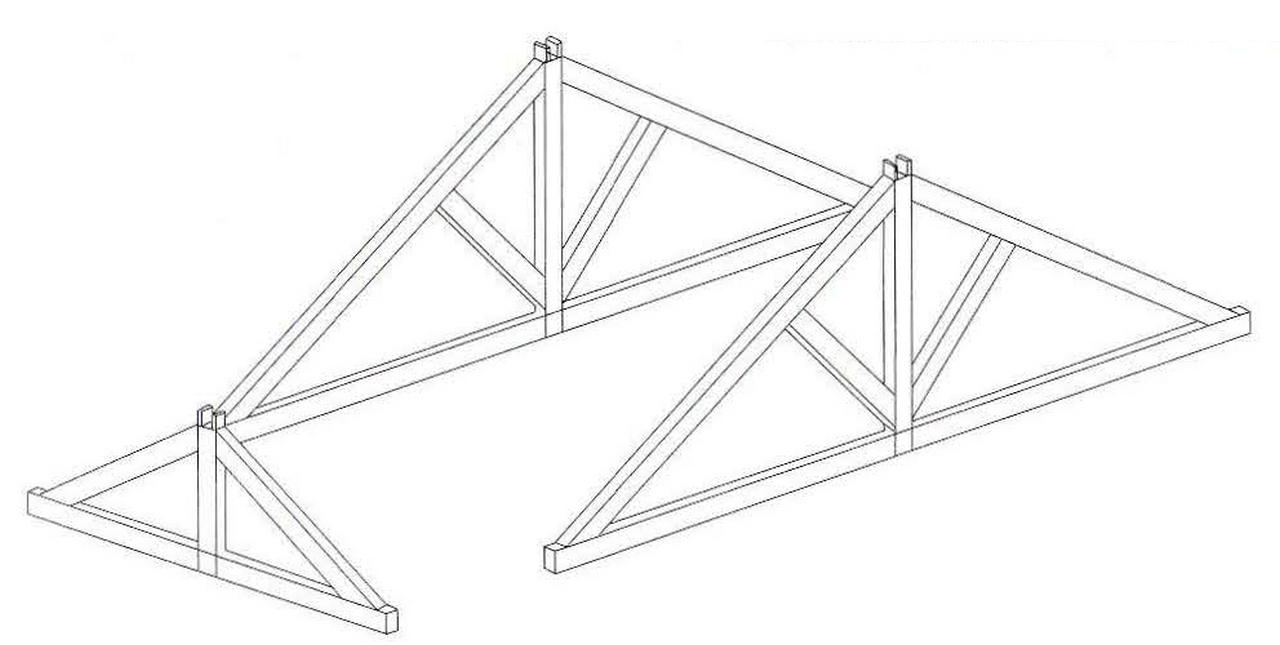

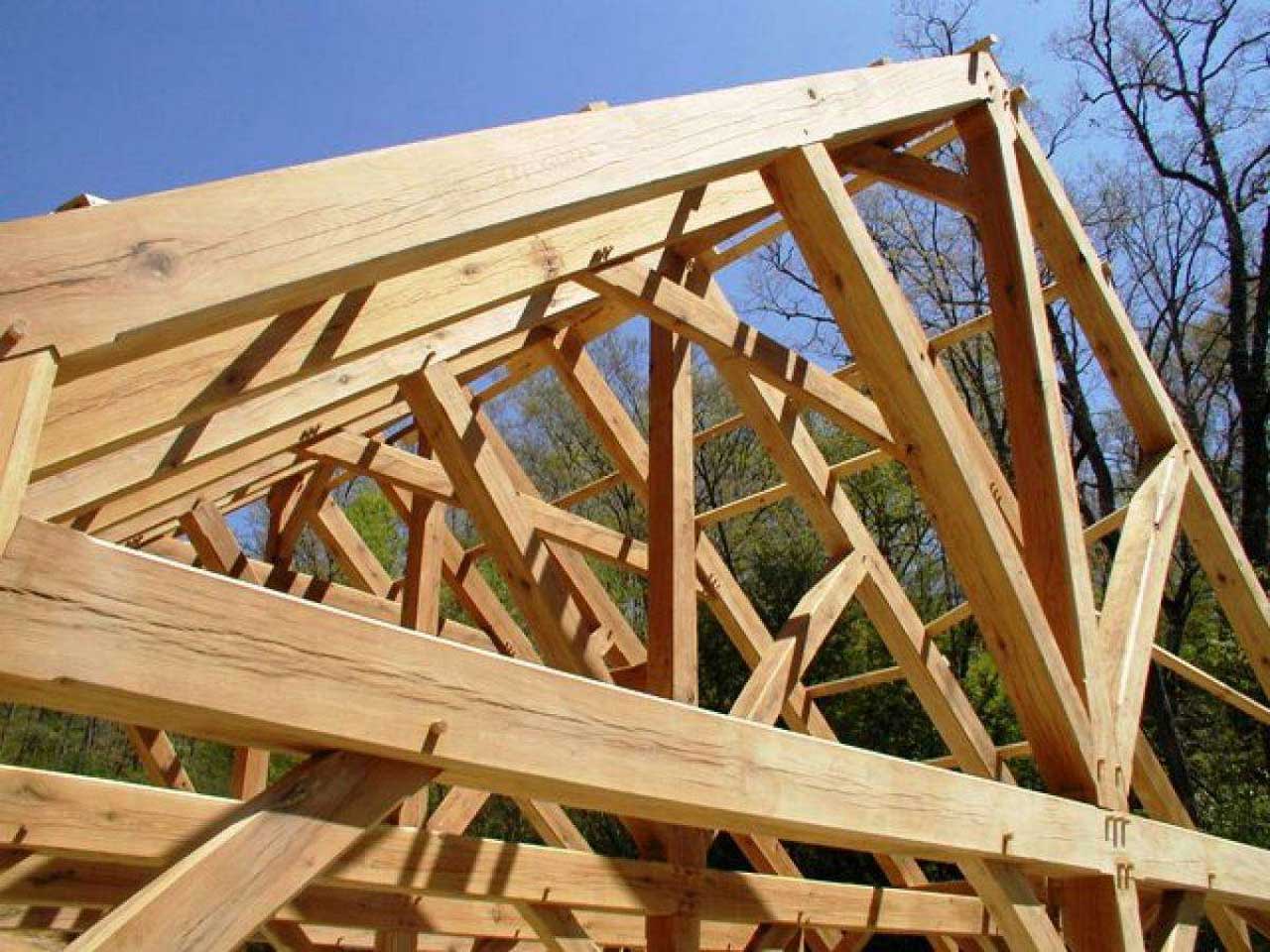

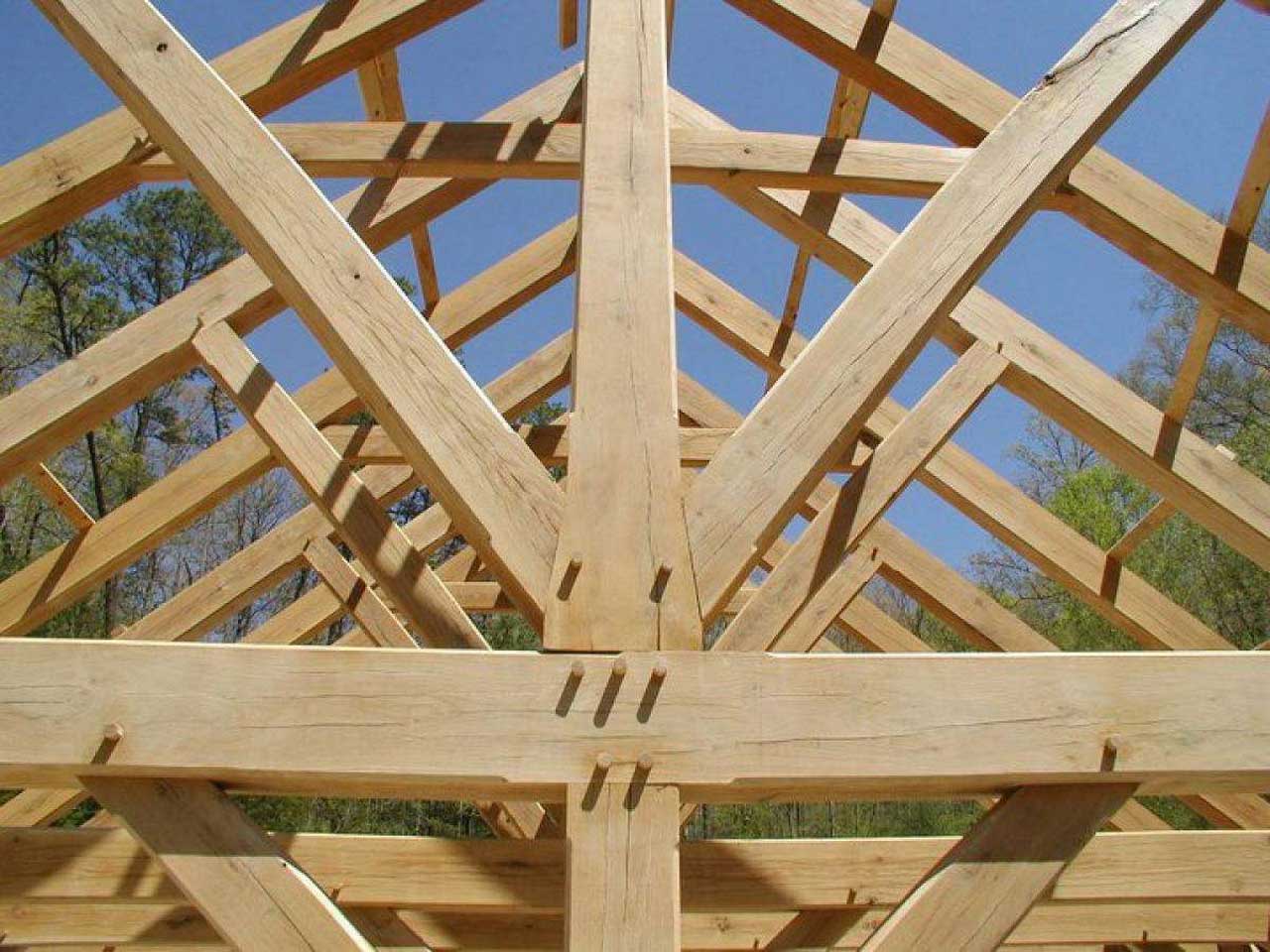

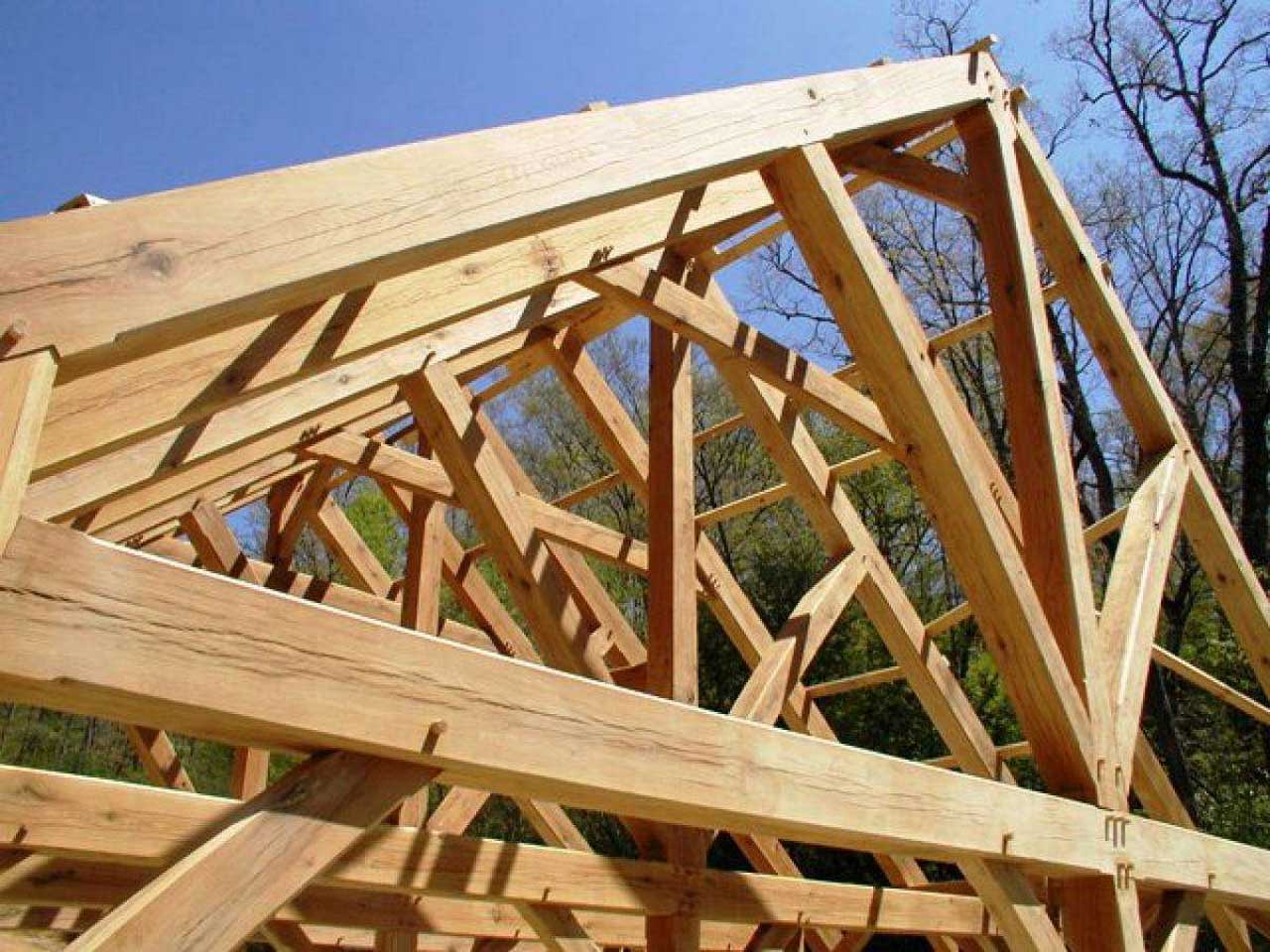

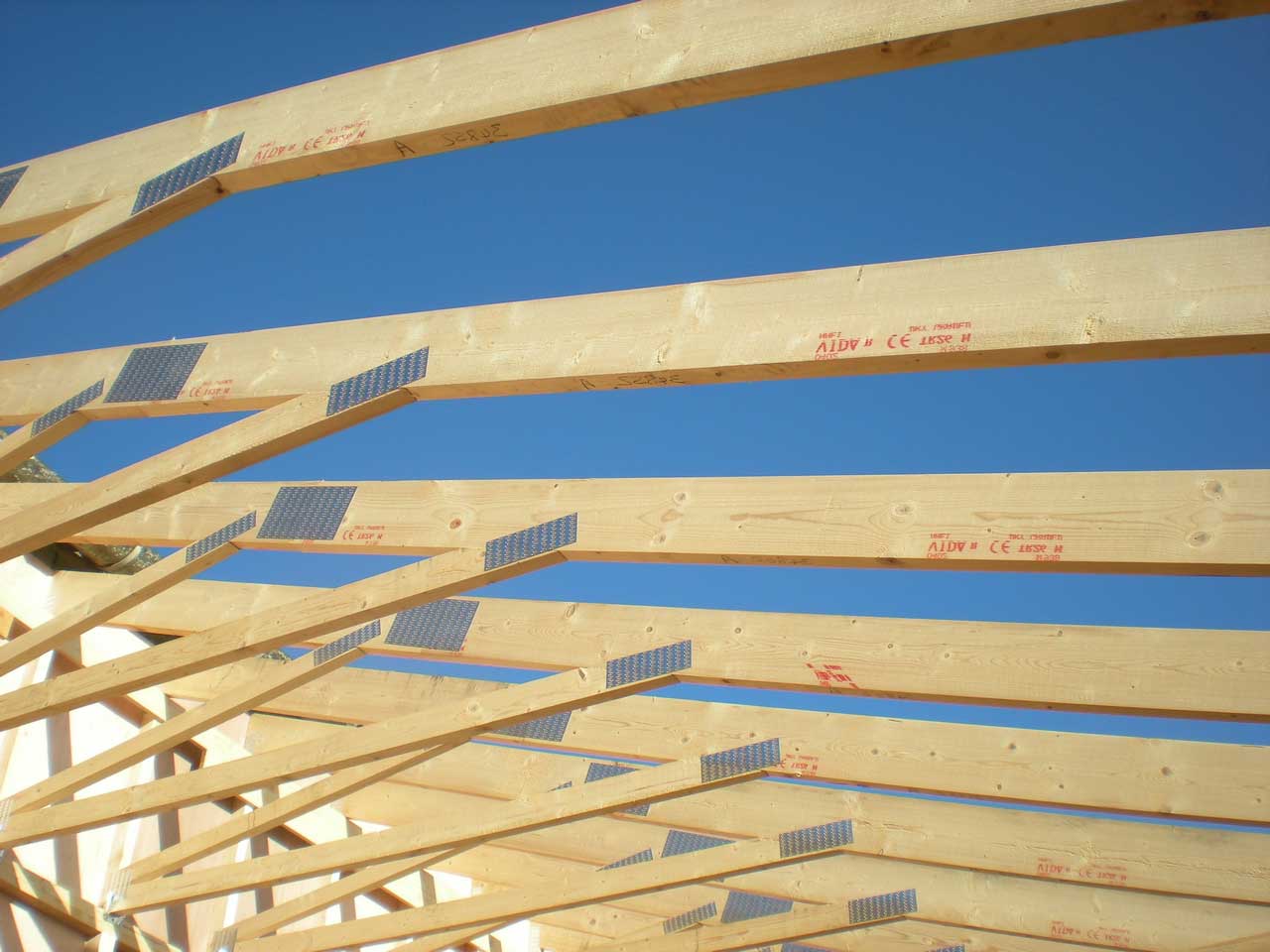

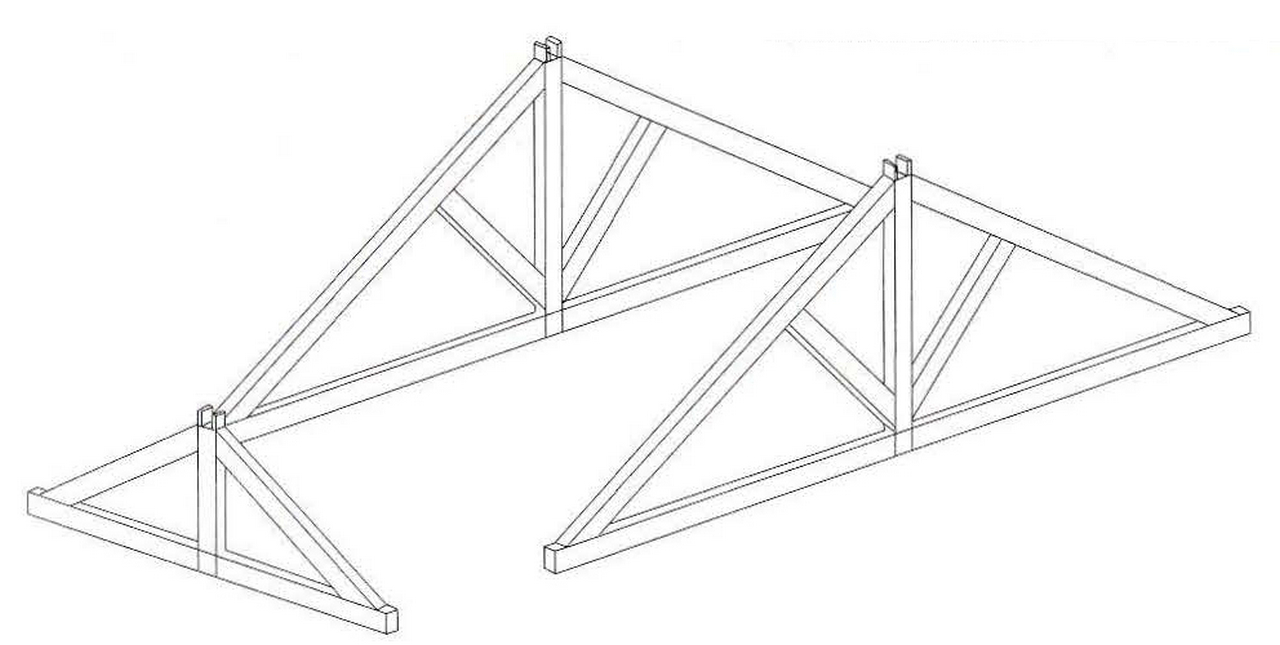

Installation of Roof Trusses

Wooden Roof Frame Construction and Calculate its Cost | Raysa House

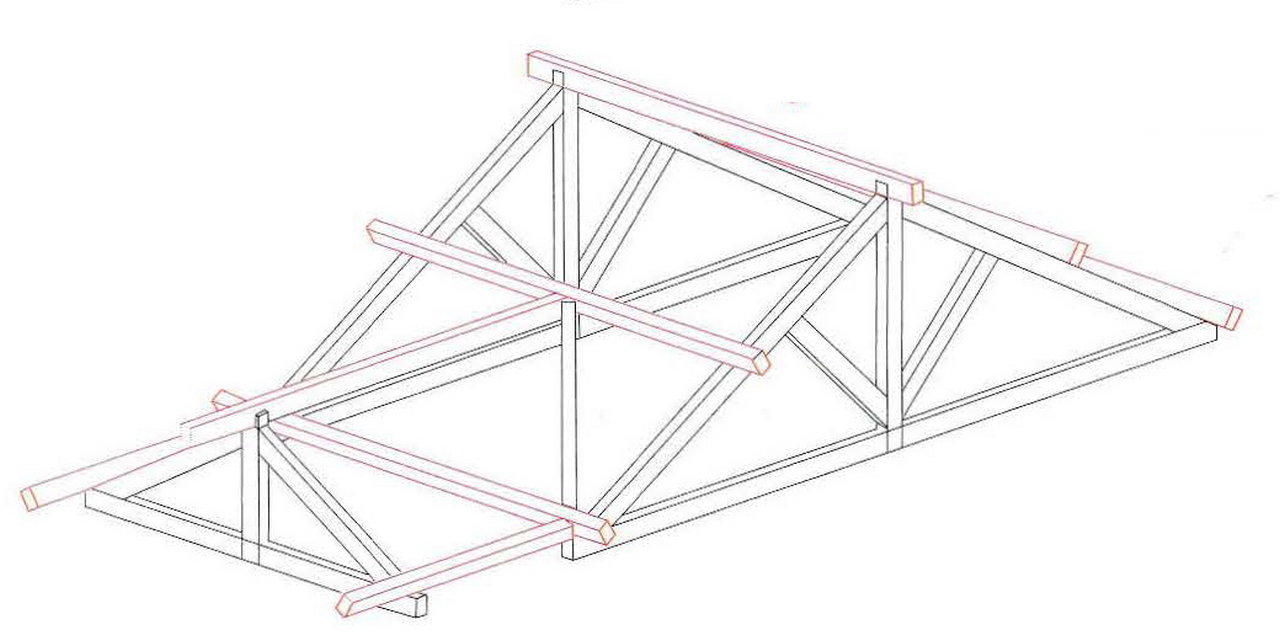

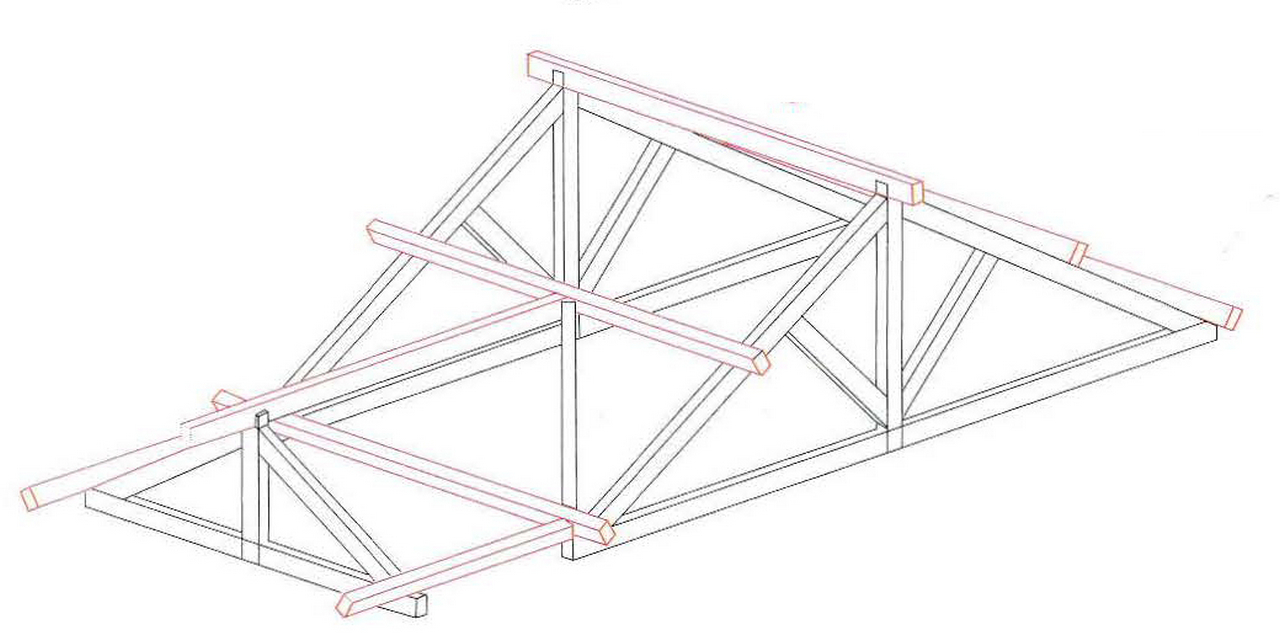

Installation of Purlin

Wooden Roof Frame Construction and Calculate its Cost | Raysa House

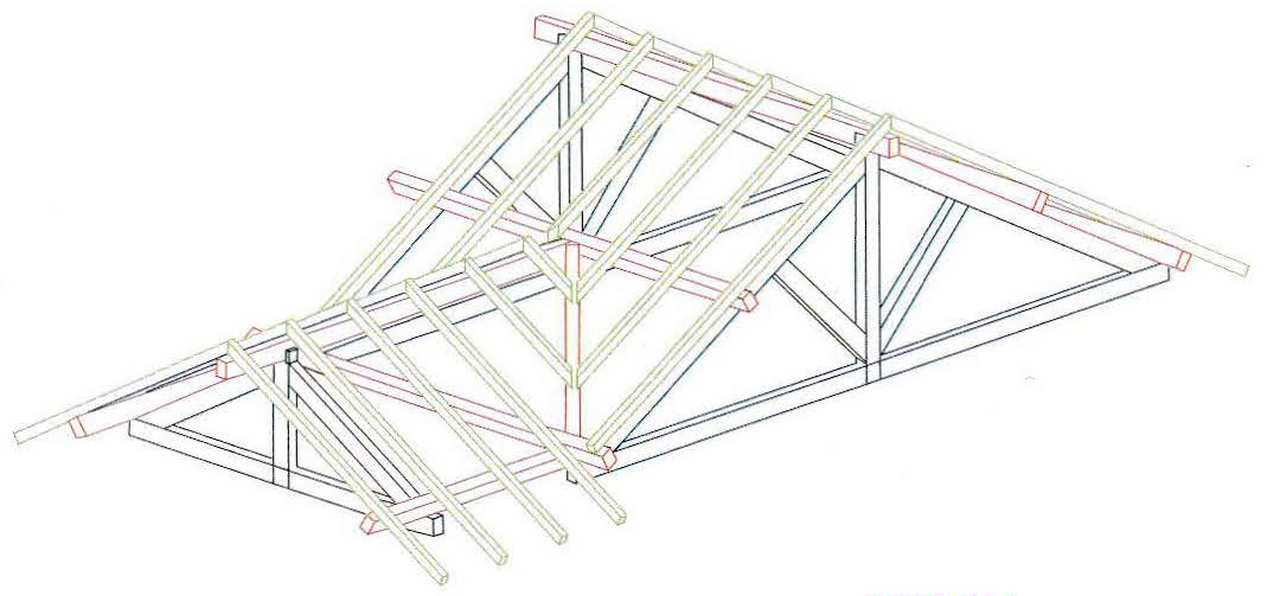

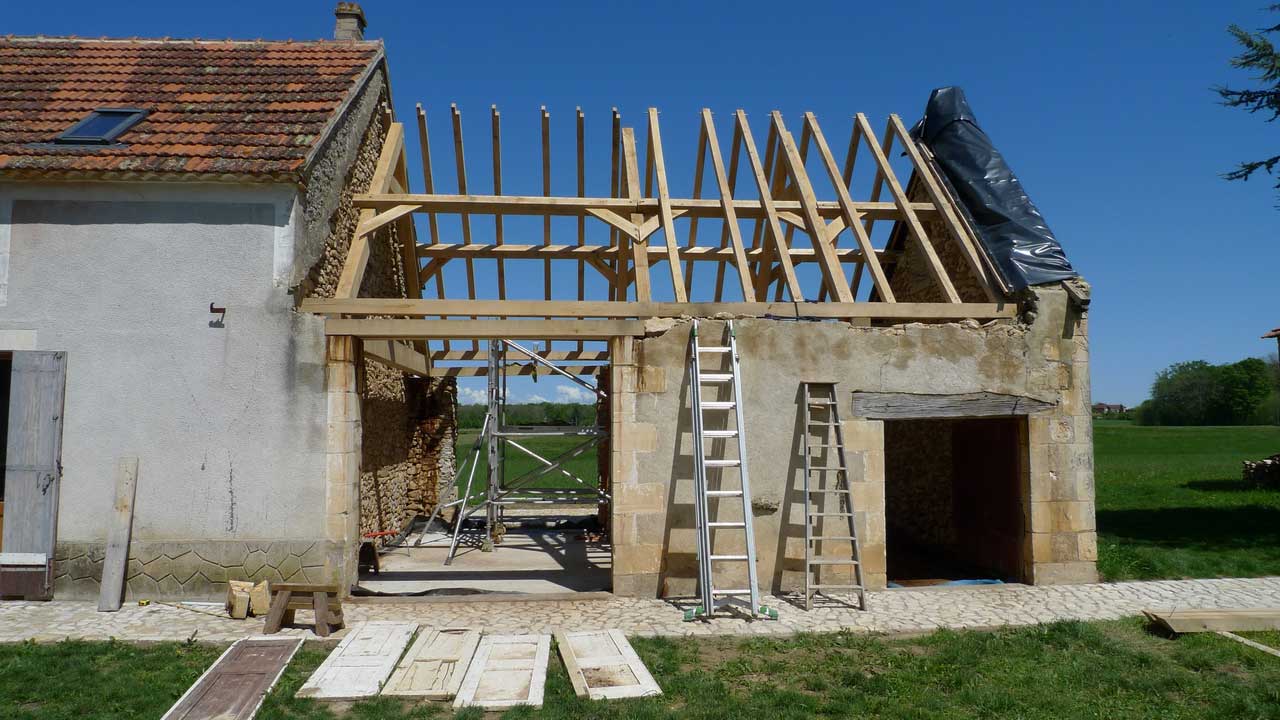

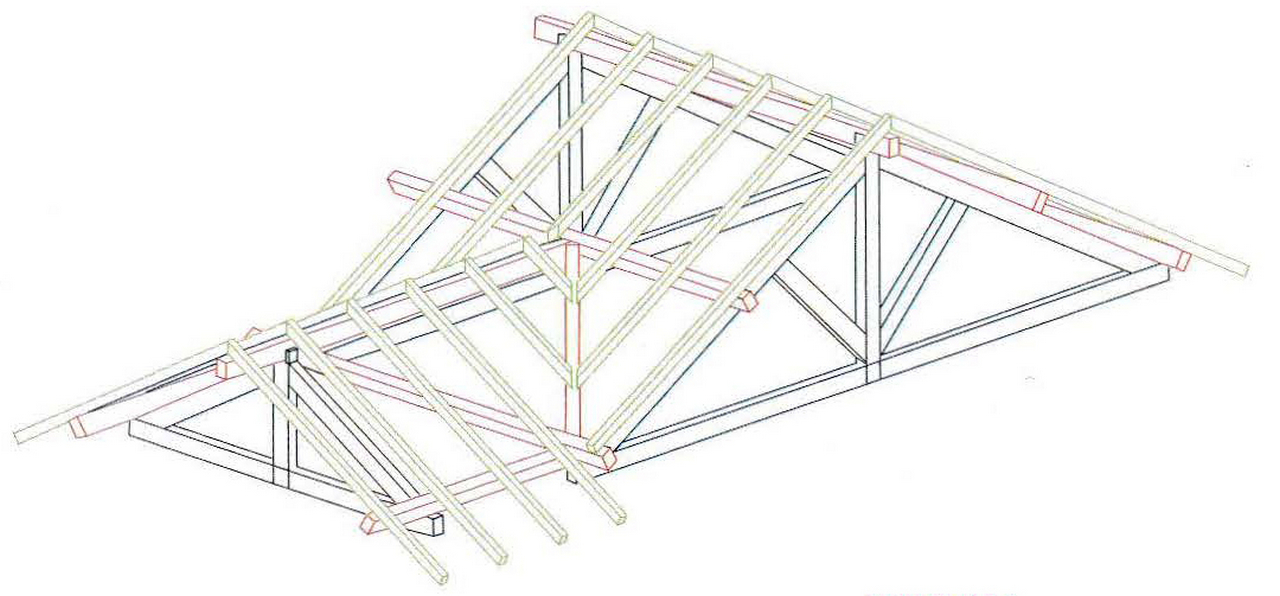

Installation of Rafters

Wooden Roof Frame Construction and Calculate its Cost | Raysa House

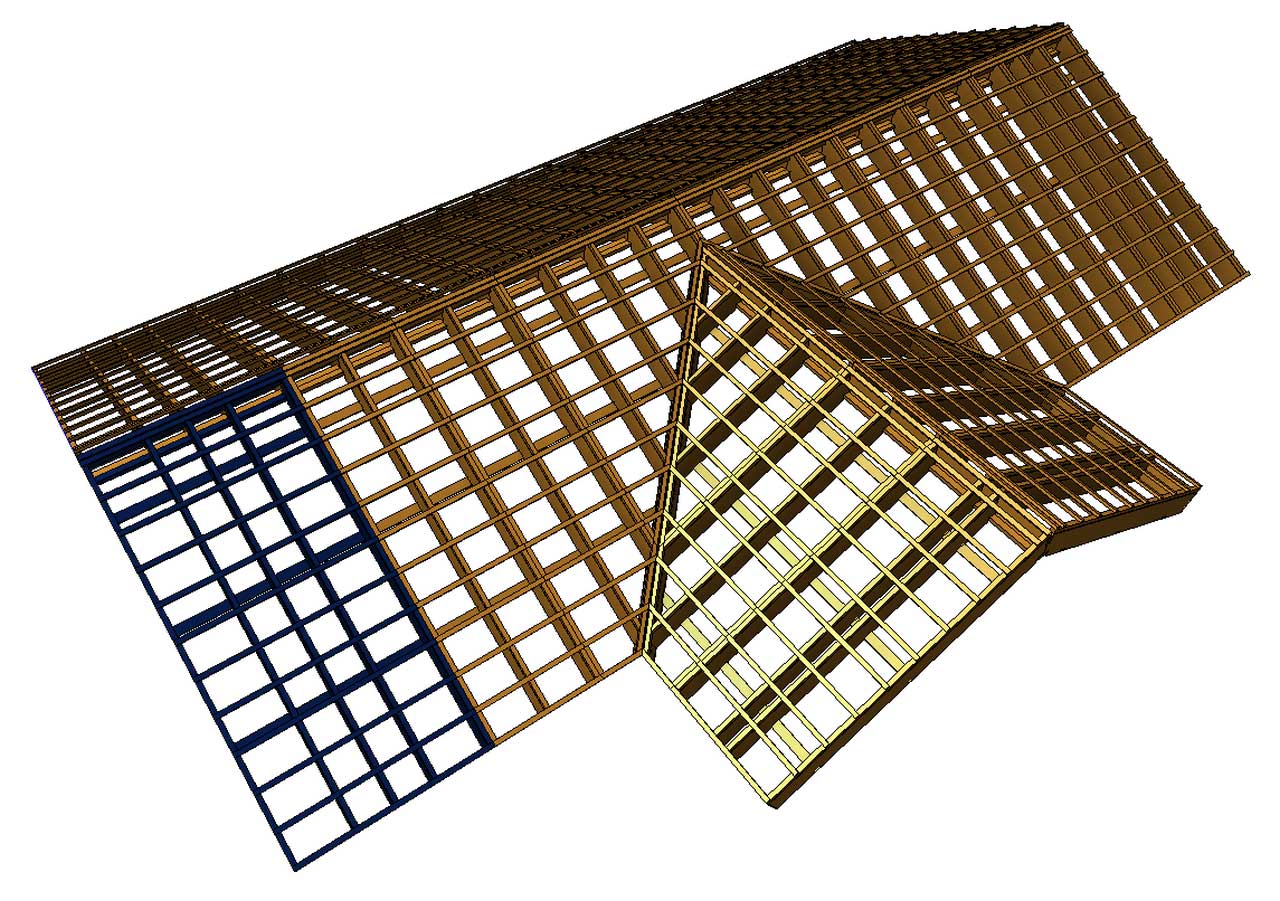

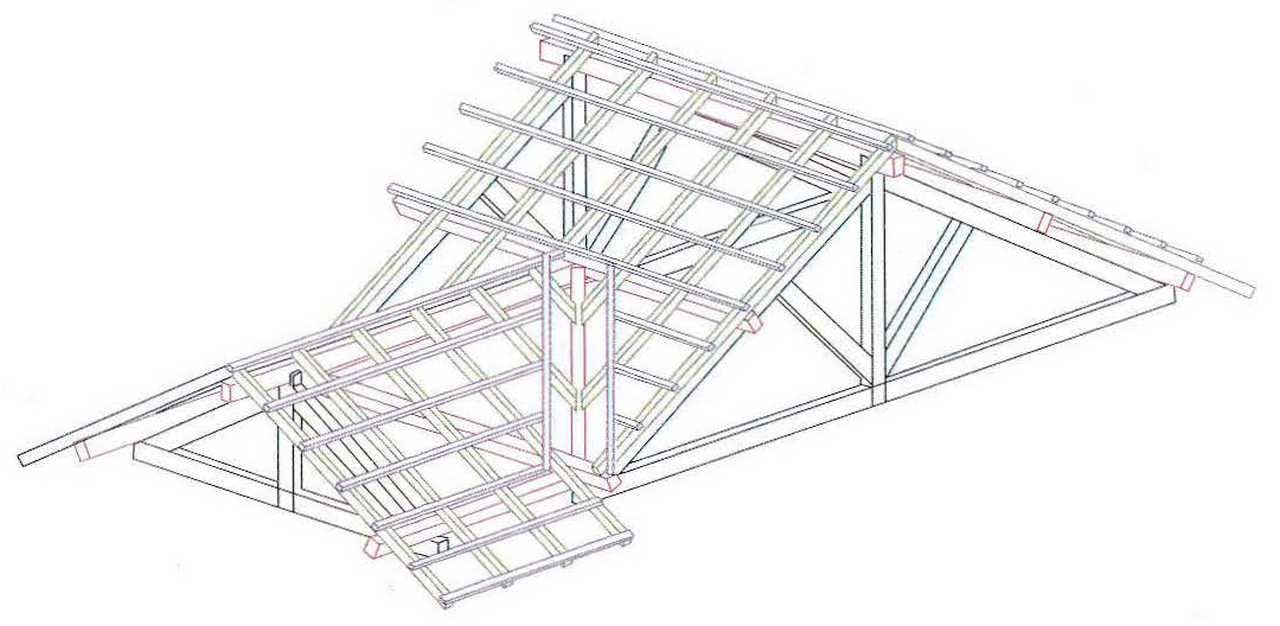

Installation of Battens

Wooden Roof Frame Construction and Calculate its Cost | Raysa House

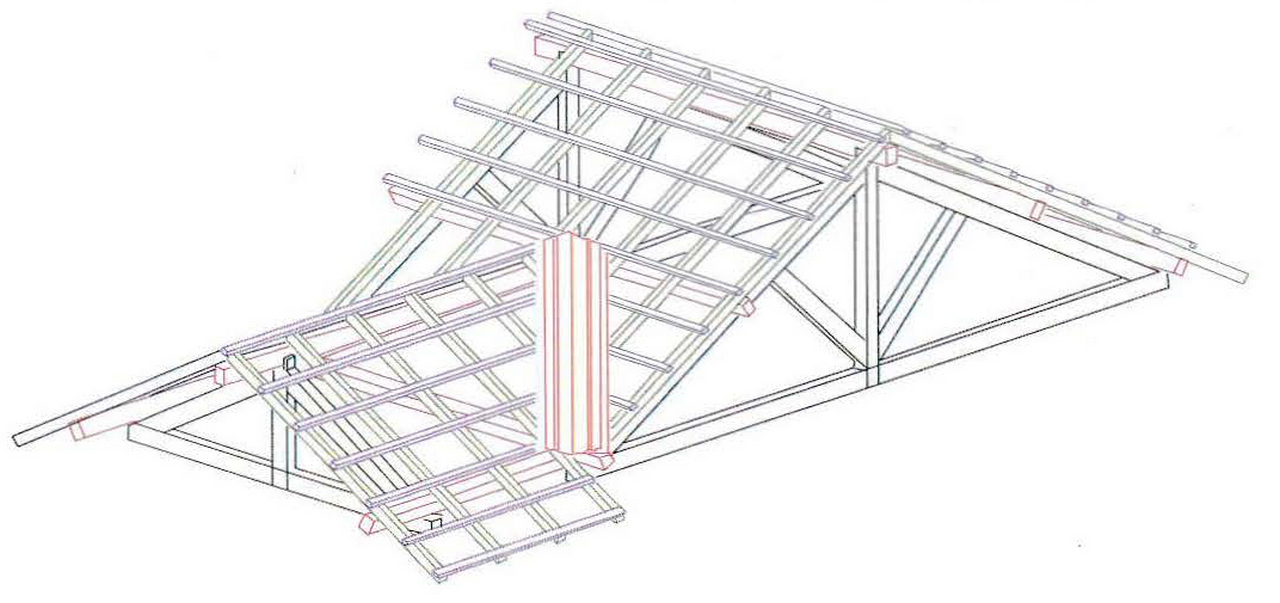

Installation of Gutters and Hip Rafter

Wooden Roof Frame Construction and Calculate its Cost | Raysa House

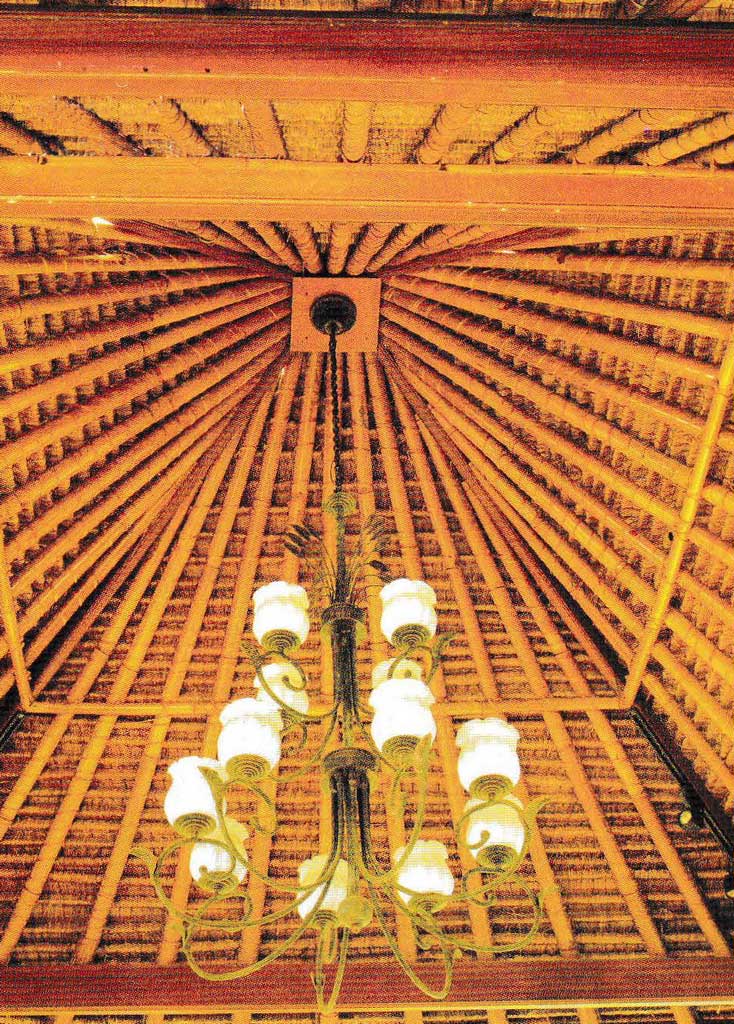

Use Bamboo To Make It Cheaper

Wooden Roof Frame Construction and Calculate its Cost | Raysa House

The roof frame uses bamboo as rafter and batten.

To reduce costs, material alternatives such as bamboo can be used as battens for roof truss. Bamboo battens are able to support a lightweight roof tile. Gazebos with roofs made of shingle are also used a lot of bamboo as a building construction.

Also read: Asphalt Shingles Or Bitumen Roof: Roof Material Types That You Should Know

Some wood has excess water content so the expansion-shrinkage capability of the wood is easier. To minimize this, the wood is first ovened so the wood dries. Dry wood has two advantages, namely the expansion-shrinkage ability is reduced and termites are reluctant to come.

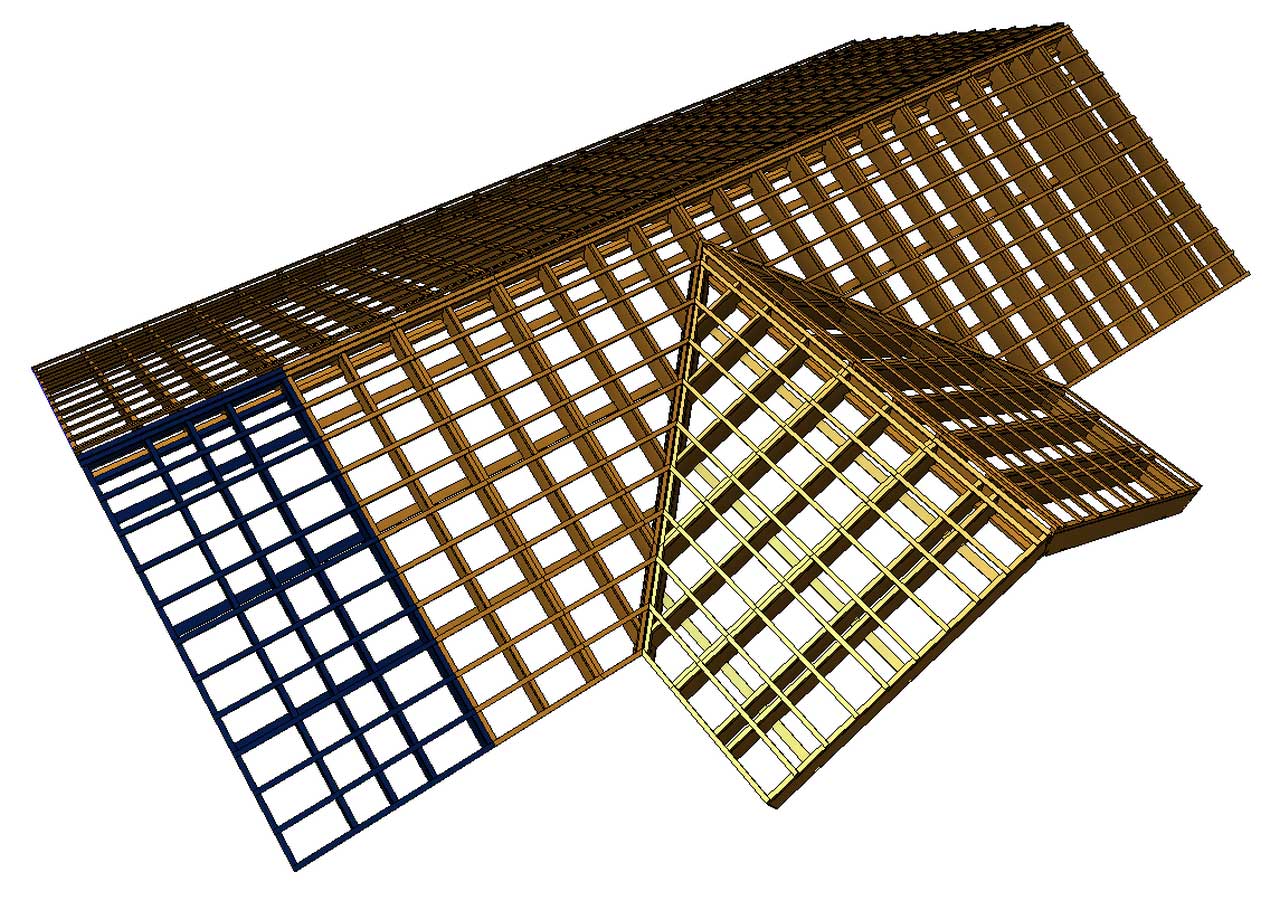

CALCULATING THE NEEDS OF WOODEN ROOF FRAME

The following is a sample calculation to find out the needs of wood in the manufacture of a wooden roof truss. The price of wood usually varies and listed below are the assumptions that approximates the real price.

Wooden Roof Frame Construction and Calculate its Cost | Raysa House

REQUIREMENTS ASSUMPTION

  • House size: type 36 (6m x 6m)
  • Wood types: Southern Yellow Pine (widely consumed and easy to find)
  • Wood length: 3m (so using multiples of 3 modules)
  • Roof model: gable
  • Roof covers: standard ceramic roof tile
  • Eaves length: 1m

NEEDS OF SOUTHERN YELLOW PINE WOOD (3m Length)

  • Beams 8/12: 26 blocks (truss and purlin)
  • Rafters 4/6: 72 blocks (distance between rafters is 50cm and for air-flow)
  • Battens 3/4: 68 blocks
  • Ridge boards 3/30: 2 sheets (distance between battens 27cm)

COST CALCULATION

  • Beams 8/12 ———— $11/blocks —– x26 —– = $286
  • Rafters 4/6 ———— $3/blocks —— x72 —— = $216
  • Battens 3/4 ———— $1,7/blocks —- x68 —— = $115,6
  • Ridge boards 3/30 —– $14/sheet —– x2 ——– = $28

The total cost for roof truss material = $645,6

The above fees have not taken into account the cost of construction workers, if the costs are added to the costs of construction workers, then the total cost is around $750. When compared with the price of lightweight steel roofs (the cheapest is around $19/m²), the difference is not much different.

Wooden Roof Frame Construction and Calculate its Cost | Raysa House Wooden Roof Frame Construction and Calculate its Cost | Raysa House

The wooden roof is still used to this day, although the times of growing. Maybe this sounds classic, but that’s the reality. A wooden roof is an alternative option for house roof design among the many other types of house roofs.
