Installing roof tiles can be a difficult and tiring process. It is important to use the correct technique in installing completely new roof tiles or replacing damaged roof tiles. This article will tell you how to install roof tiles.

Roof Tile Installation Procedure and Roofing Accessories Function | Raysa House

ROOF TILES INSTALLATION PROCEDURE

Do the following before installing roof tiles.

  • Roof frames have been installed according to specifications.
  • It is recommended to use insulation (underlay).
  • The fascia board, hidden gutters, and rafters are installed first.
  • The distance and size of battens must be in accordance with the specifications and recommendations that have been suggested.

See also: Wooden Roof Frame Construction and Calculate its Cost

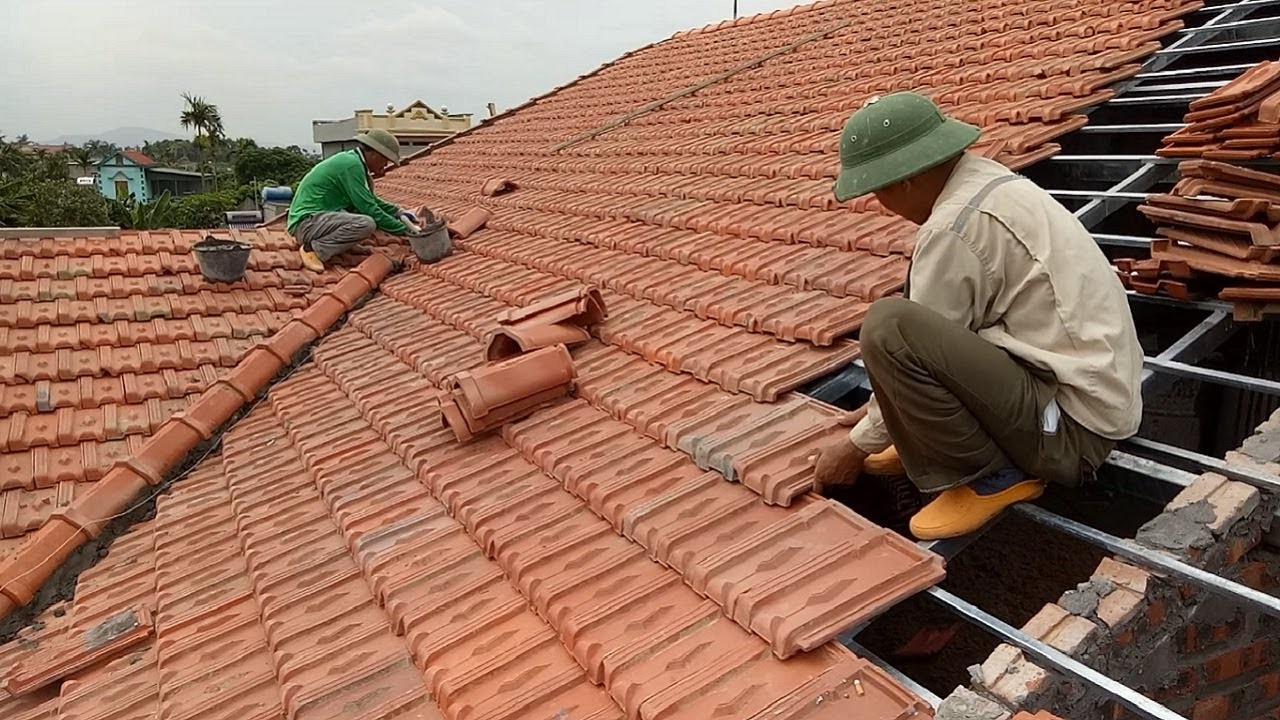

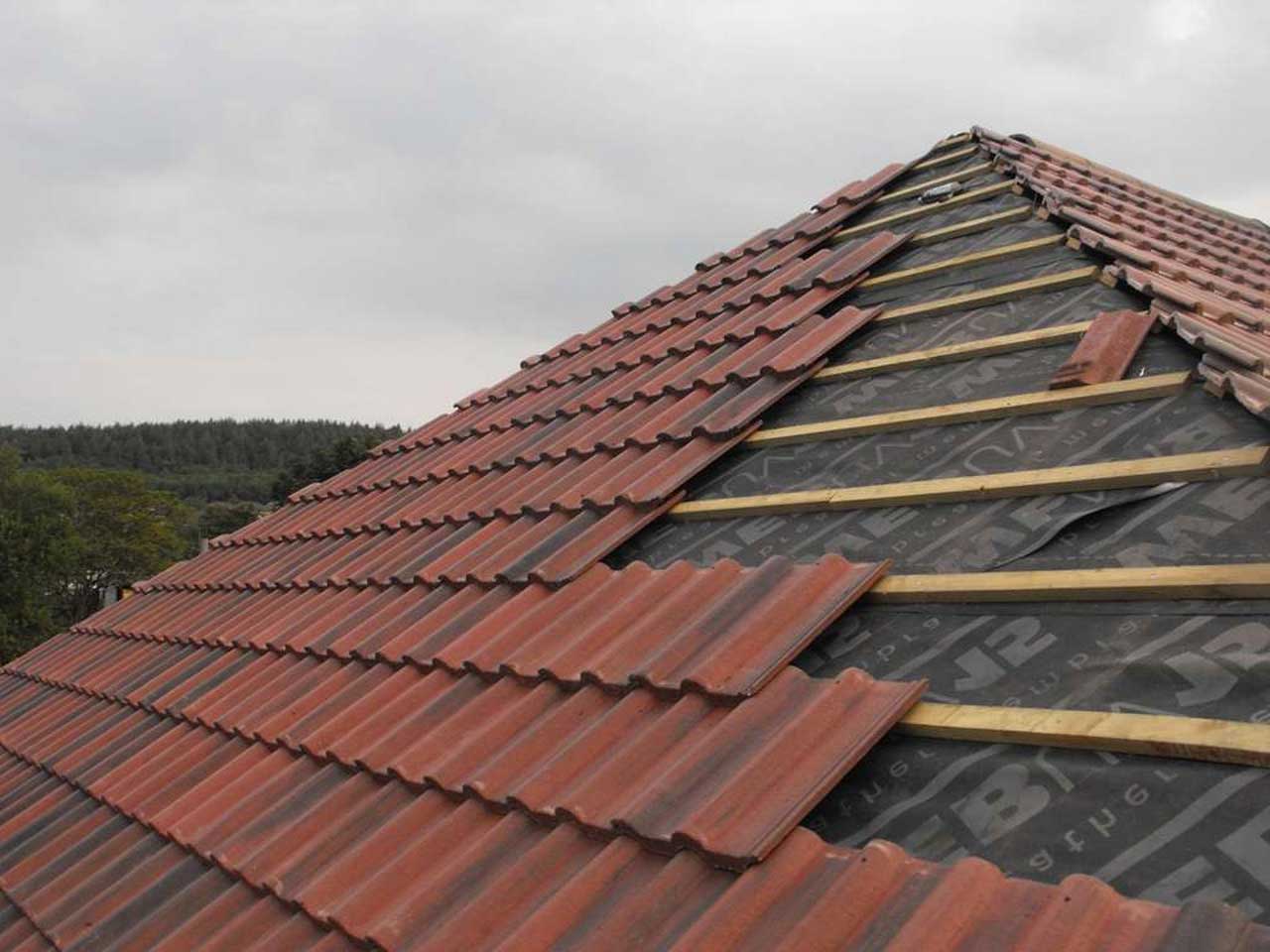

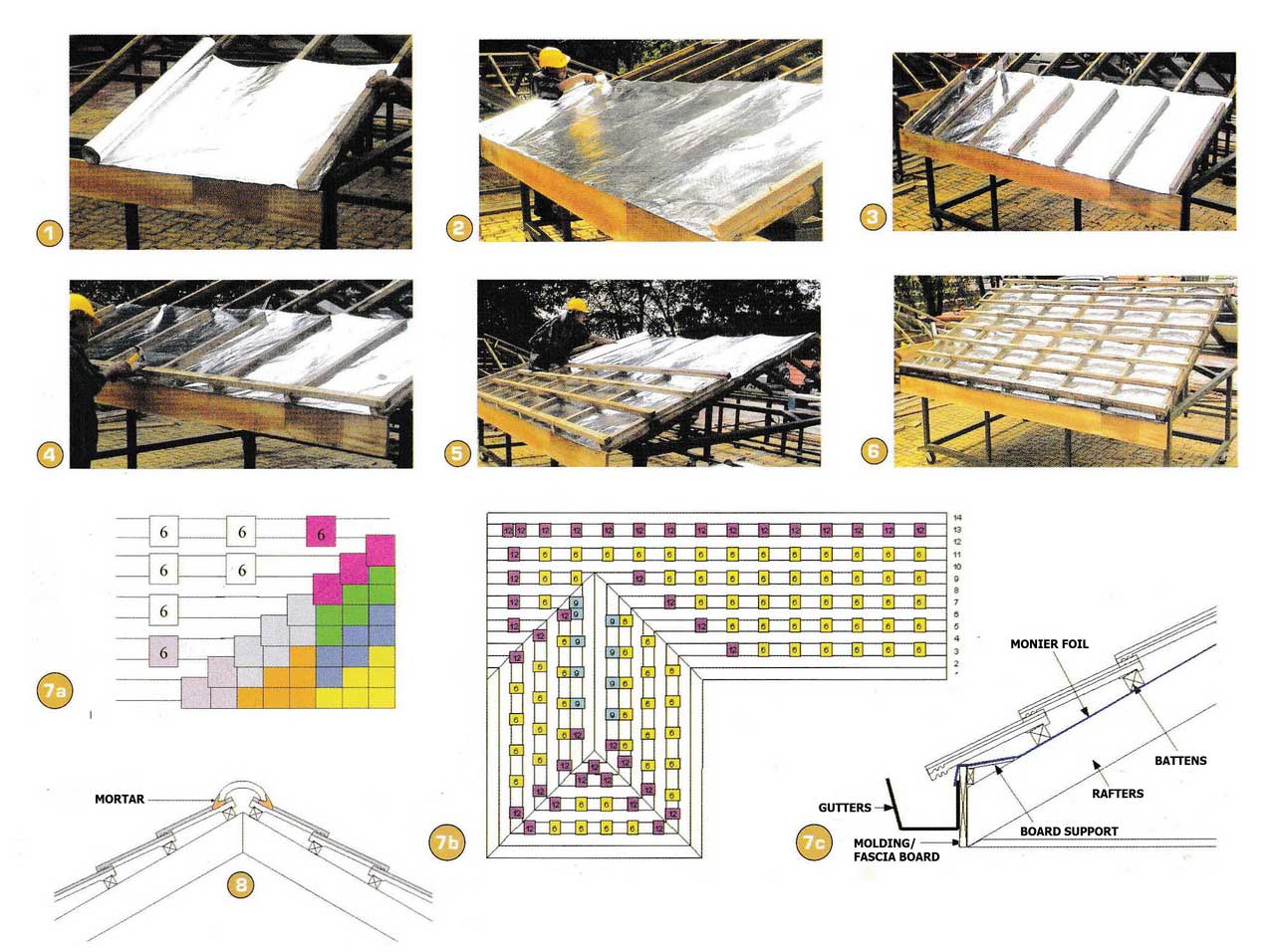

The stages of roof tile installation are as follows.

  1. Install insulation on rafter wood, stretched from right to left using lath wood mounted vertically (parallel to rafter) that is 1 meter long and nailed to rafter to clamp insulation
  2. Pull the insulation – in the form of aluminum foil – until there is no deflection, then pinch it with a vertical lath and the rest is cut following the side of the rafter.
  3. Continue installing vertical battens to one full line.
  4. Nail battens on vertical battens, starting from the bottom up.
  5. Make an overlap, a minimum of 10 cm in the first insulation and repeat the previous step until cover the entire roof frame.
  6. Install the batten at the bottom position with an approximate distance of overhang minimum of 70 mm.
  7. Raise and place the roof tile arrangement on the roof frame.
  8. Install the flat-ridge with mortar



ROOFING ACCESSORIES AND WHAT ITS FUNCTIONS?

In addition to beautifying, accessories on the roof also plays a role in maximizing the function of the roof.

Roof Tile Installation Procedure and Roofing Accessories Function | Raysa House

Many parts of the building are likely to be given a touch of art by applying certain accessories. Unlike other accessories, accessories for the roof emphasize its function to maximize the function of the roof.

Based on this specificity, roof accessories are included in the product group of Fitting & Roof System Components or Roof System Components. Beyond that, of course, there are also roof accessories that only function as aesthetics and a typical model of a house. Here are some examples.

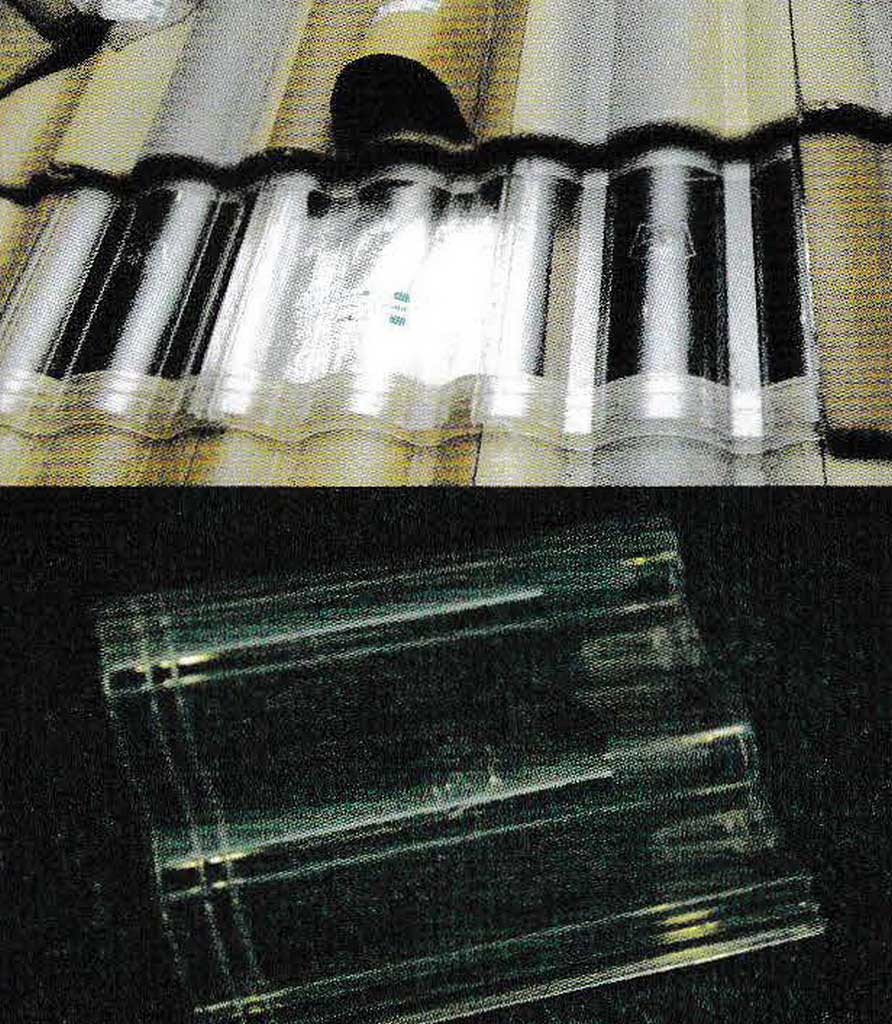

THE TRANSPARENT ROOF TILE/SKYLIGHTS

Roof Tile Installation Procedure and Roofing Accessories Function | Raysa HouseLike a window for a roof, this type of roof tile can put light into space. Dark spaces during the day due to the absence of windows facing the outside of the house, of course, requires roof tiles of this model. Made from fiberglass or other material that is transparent, the size is the same as other roof tiles (for the same brand of product) so that it can be mounted with precision and strength can also be reliable.

The application of skylights must be careful. We do not need direct sunlight or light, but rather the reflections so that skylights can cause the room to become hot.

See also: Extreme Heat Prevention: How to Keep your House Cool in this Summer

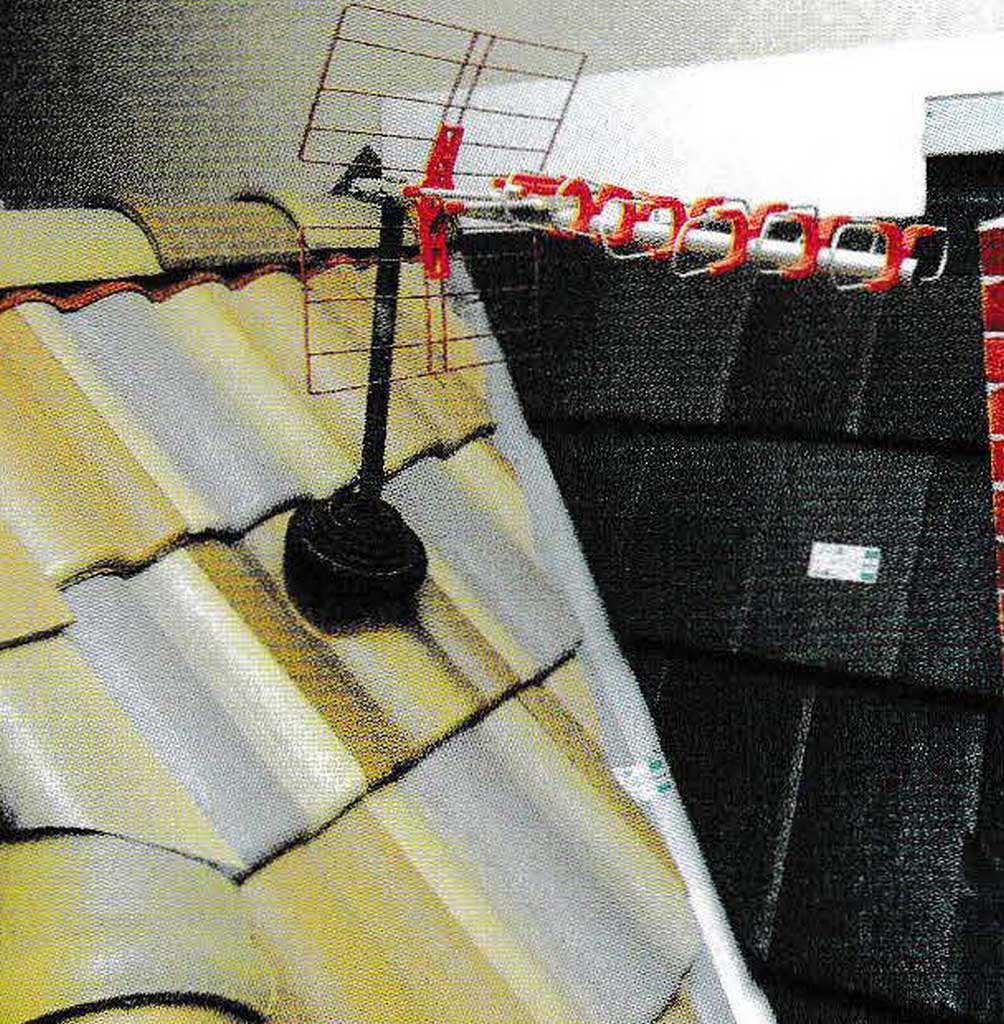

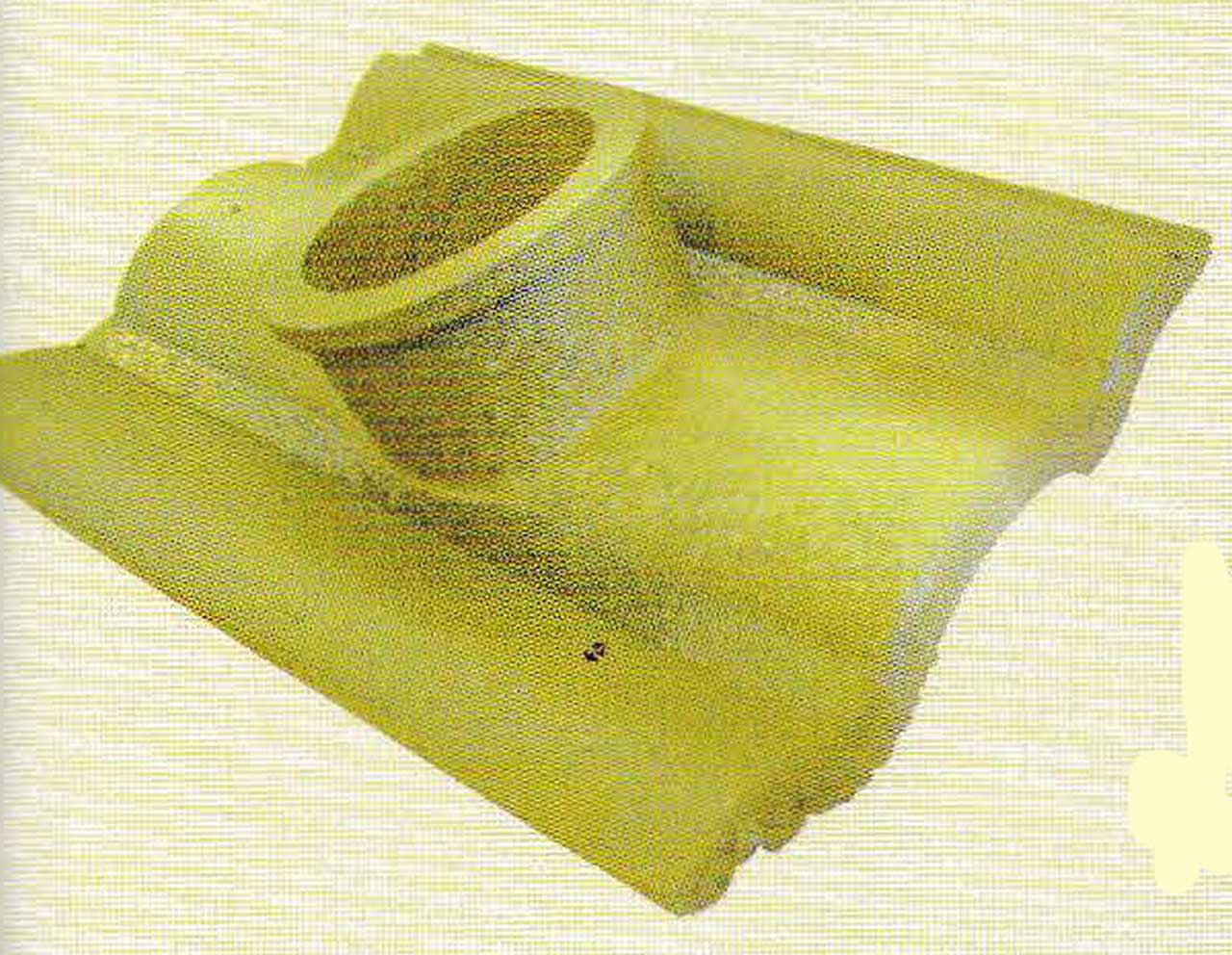

INSTALLATION ROOF TILE

Roof Tile Installation Procedure and Roofing Accessories Function | Raysa HouseRoof Tile Installation Procedure and Roofing Accessories Function | Raysa HouseThis roof tile has some certain functions depending on the requirements. Made with special forms adapted to the application. Some of its functions are: to hold an antenna, an air vent pipe, or a septic tank exhaust pipe.

The shape is the same as the regular roof tiles but at the top is given a hole. To strengthen the handle, the hole is covered with rubber which also functions to prevent water from entering the house.

Roof Tile Installation Procedure and Roofing Accessories Function | Raysa House

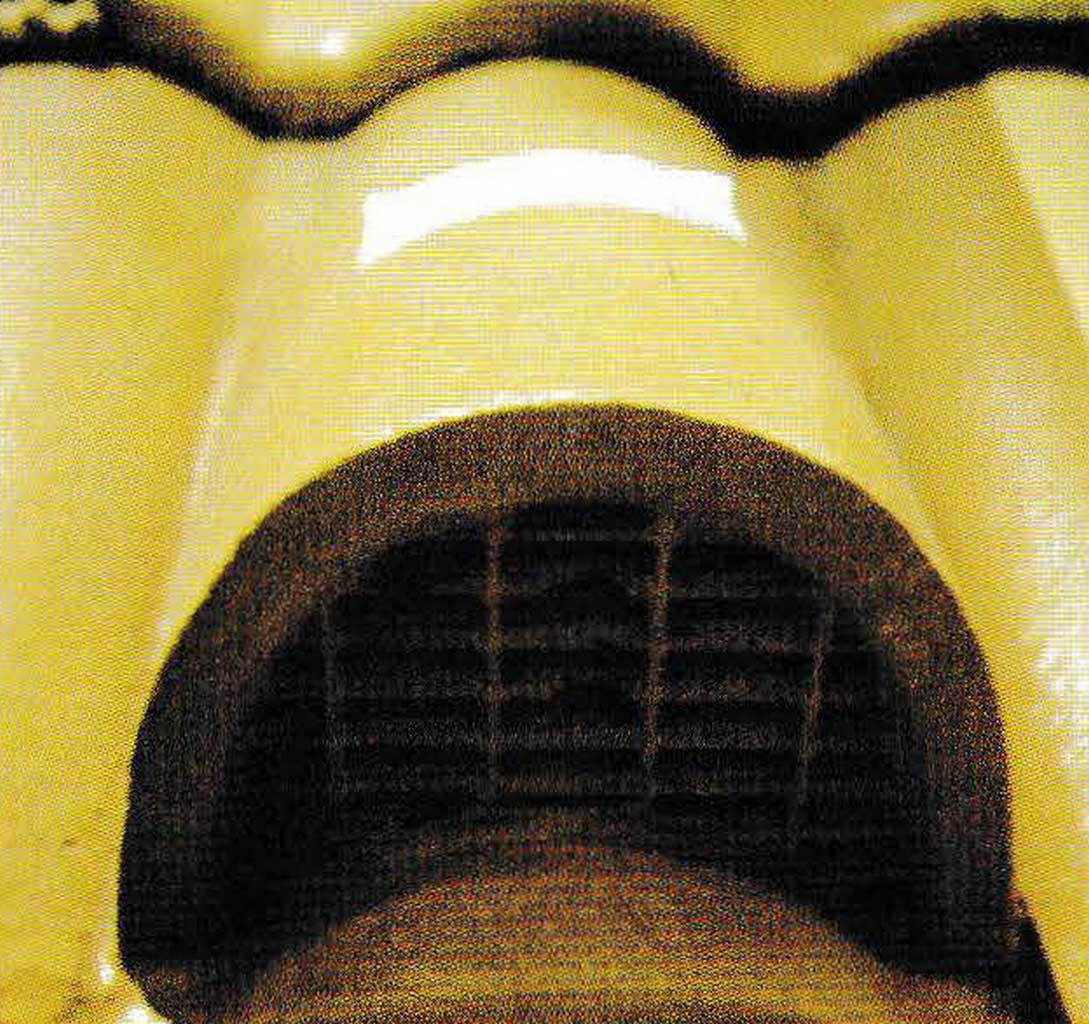

ROOF TILE VENTILATION

Its function is to flow the air into the house so that the air temperature in the house does not increase. This roof tile has a “window” at the top and faces to the side, so the water does not go directly into the house. The shape and size are precision so that it is easily installed side by side with other roof tiles and looks beautiful.

Roof Tile Installation Procedure and Roofing Accessories Function | Raysa House

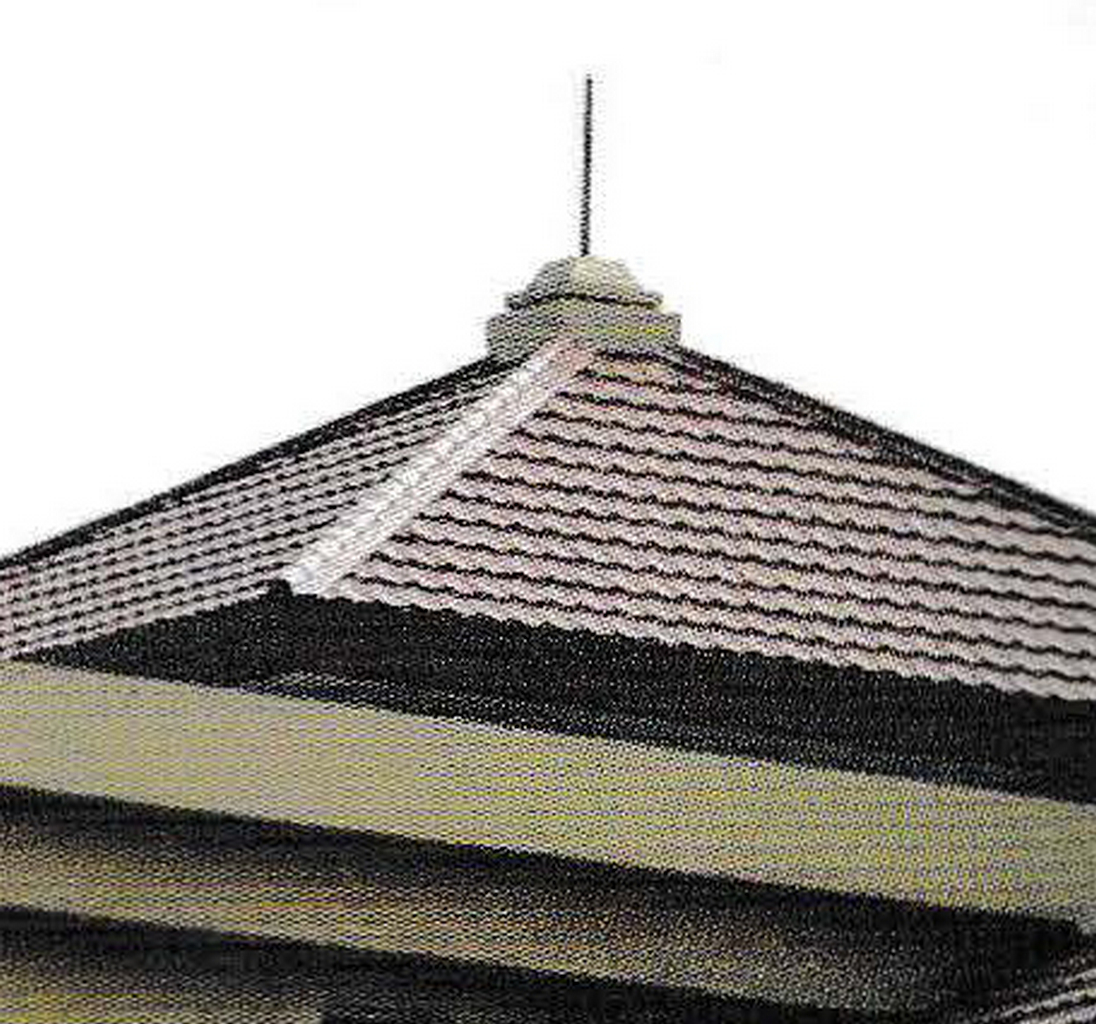

LIGHTNING ROD

Can be purchased separately or one package with other roof tiles. Mounted at the top of the roof to deliver excessive electricity from lightning into the house. The roof looks neat by applying this accessory. Some manufacturers produce it in the form of ridges with lightning rods that are directly installed.

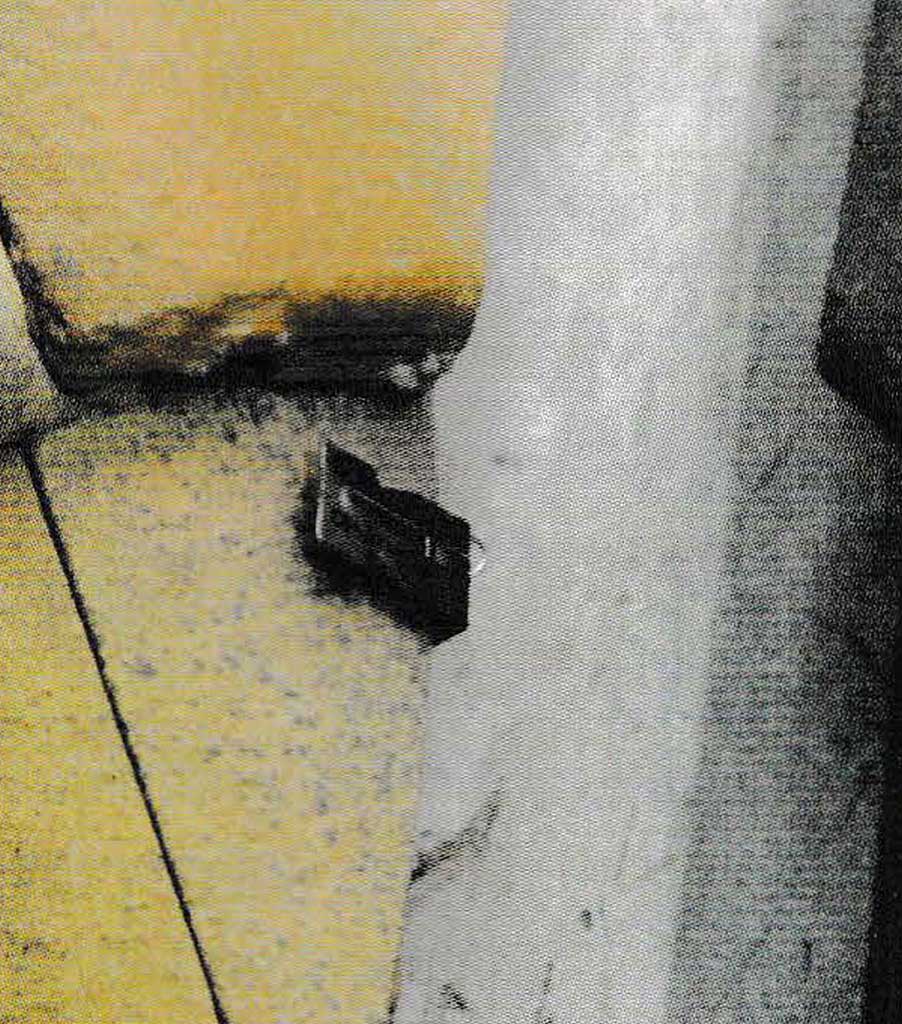

ROOF TILE RETAINING CLIPS

Roof Tile Installation Procedure and Roofing Accessories Function | Raysa HouseMade from stainless steel which is used to clamp the edge of the roof tile and attach it to the battens so that the roof tile does not sag or detach from the stand. There are 2 ways to install it, some use hammerheads and some are directly installed without tools.

Another type of roof tile retaining clip is a hook of roof tile pieces. At the roof corners sometimes roof tiles have to cut. Usually, in this section there are no bumps to hook the roof tile with battens. For that, you need a clip to tie the roof tile pieces on the stand so as not to shift.

Roof Tile Installation Procedure and Roofing Accessories Function | Raysa House

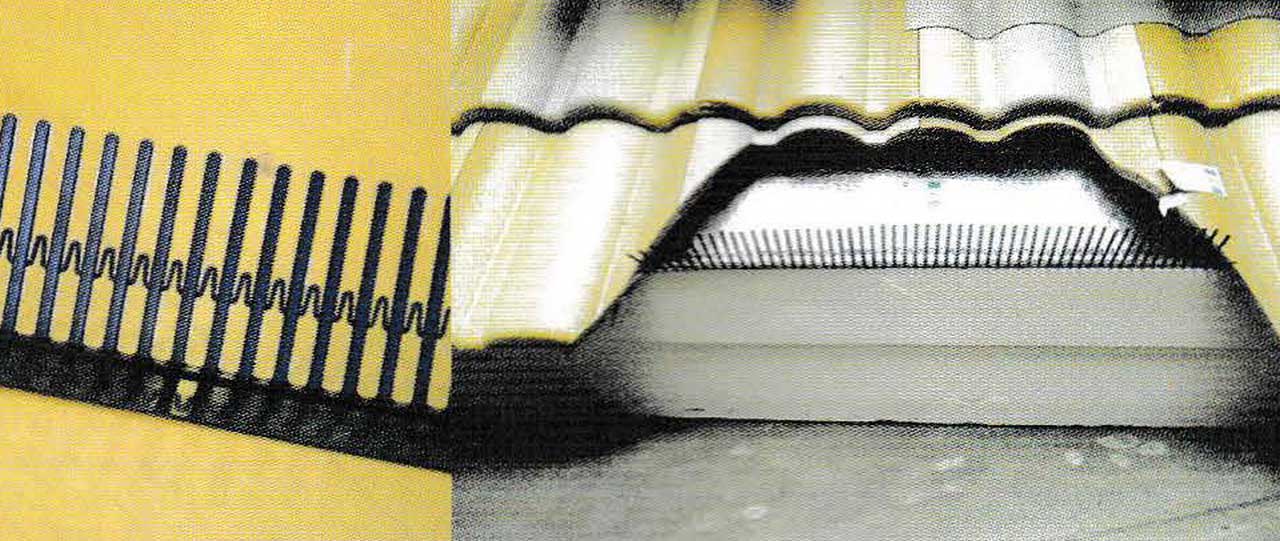

THE FASCIA BOARD SHIELD

Actually, what is protected by this accessory is not the fascia board. This flexible comb-shaped accessory is mounted on top of the fascia board and just below the roof tile at the lowest section. The function of this tool is to prevent the entry of insects, birds or rodents into the house through a gap between the roof and roof tiles.

Other Types of Roof Accessories

Roof Tile Installation Procedure and Roofing Accessories Function | Raysa House

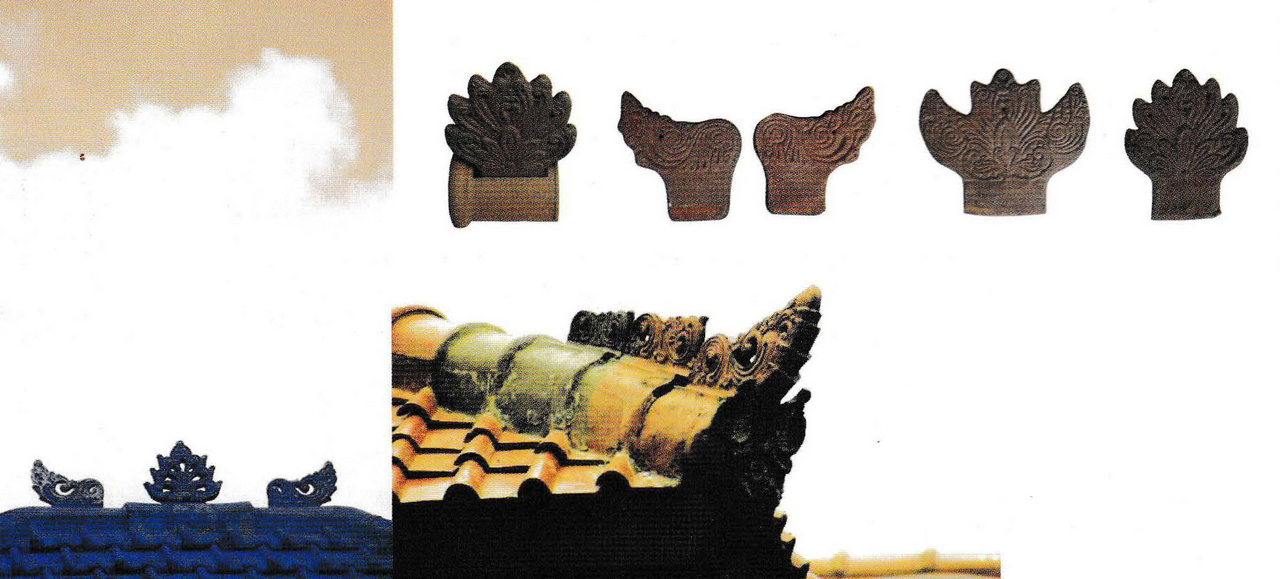

Generally just to decorate the appearance of the roof as well as ornamental ridges. These accessories usually come from traditional house forms.
